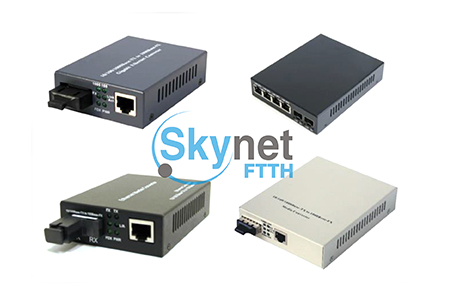

SK 10/100/1000Base-T Gigabit UTP Fiber Ethernet Media Converter 0-120KM
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
FMC |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Box |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Mode: |
100M, 1000M |
Port: |
SC, LC, FC |
|
Distance: |
0-120KM |
Power Supplier: |
220V AC Or +48 DC |
|
Cable UTP: |
Cat 5 UTP |
Humidity: |
5 -90% |
10/100/1000Base-T Gigabit Ethernet UTP Fiber Optic Media Converter
Description:
Fiber media converter is the network communication device that realizing smooth network upgrade without any additional cost.
It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
It completely conforms to 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x standards, and can connect with Person Computer, SERVER, HUB and SWITCH.
Features:
1. Support one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX Gigabit Ethernet Fiber port
2.Support 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
3.Support comprehensive types of fiber with different distances and connections, including SC/Bidi/LC and so on
4. Support auto mode on TP port
5. Fully compatible with CISCO, HP, 3COM equipment.
6. Low power consumption design, low heat dissipation for stable working.
7. Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX
8. Support full-duplex and half-duplex, auto-negotiation
9. Support automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
10.Support the transmission of extra-long VLAN packets
11. Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;
12.Support STP to form a redundant network;
13. Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
14. Multi Mode transmission distance:550M,Single Mode transmission distance:up to 80KM
15. Slide-in design optional, can be installed into HT100-2U-16 rack chassis
16. With wall mountable hole for industrial application
17. RoHS compliant
18 LFP(Link fault pass-through) Function,with DIP switch for setting
Application:
Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
Extend your Ethernet connection up to 0~120km away using fiber optics
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
Specification
Specification:
|
Ethernet interface |
One Ethernet port |
|
Connector: RJ45 |
|
|
Auto-adapt full/half duplex |
|
|
Auto-adapt 10/100M |
|
|
Both MDI/MDIX available |
|
|
Optical interface |
Connector: SC default, SC/FC/LC option |
|
Optical port: 155M |
|
|
Default: Dual fiber, single mode,25km, 1310nm |
|
|
Optical module for single/multi mode,single/dual fiber and distance from 20-120KM is customized according to different requirement. |
|
|
Indicators |
PWR, FLINK, ELINK,100M, DUP |
|
Environment |
Working temperature: 0℃~70℃ |
|
Storage temperature: -40℃~85℃ |
|
|
Relative humidity: <90%, non-condensing |
|
|
Power: AC or DC power |
