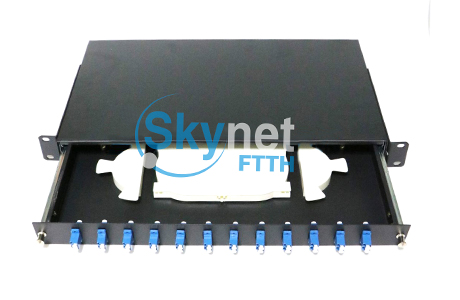

SK 12 Duplex Port Fiber Optic Terminal Box with 19 Inch Standard Structure

Fiber Optic Teriminal Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology.

Features

Product Details:

Place of Origin:

China

Brand Name:

TTI

Certification:

ISO, SGS, ROHS

Model Number:

FTB-12

Payment & Shipping Terms:

Minimum Order Quantity:

10 pcs

Price:

Negotiation

Packaging Details:

Box

Delivery Time:

2-3 days

Detailed Product Description

Structure:

19'' Rack Mounted

Model:

Fixed Type, Slidable Type

Connector:

SC LC FC ST

Material:

Cold Rolled Steel, AL

Color:

Black, White, Grey

Port:

6, 12, 24, 48, 72, 96

Height:

1U, 2U

Thickness:

0.8mm,1.0mm, 1.2mm

12 Duplex Port Fiber Optic Terminal Box with 19 Inch Standard Structure

Description:

Fiber Optic Teriminal Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology.

Box stack turn the page type structure fusion fiber disc and independent insulated grounding device.

Suitable for being installed in different kinds of optical distribution frame or cabinet.

Fiber guiding hoops on front and rear sides protect fibers from mechanical damage, and are arranged to ensure bending radius protection.

Feature:

19” standard installation

Adjustable position in forward and backward direction

Compact aluminum body

Electrostatic spraying surface

Light structure and fine-looking appearance.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

Specification

Fixed Type:

Type

OTB-RF-1UA

OTB-RF-2UA

OTB-RF-1UB

OTB-RF-1UB

OTB-RF-1UC

OTB-RF-2UC

Size(mm)

430*250*1U

430*250*1U

482*295*1U

320*240*100

350*340*120

350*340*120

Max capacity(core)

24

48

24

48

24

48

Weight(kg)

2.6

3.8

3

4

3

5

Slidable Type:

Type

OTB-RS-1UA

OTB-RS-2UA

OTB-RS-1UB

OTB-RS-2UB

OTB-RS-1U-3MPO

OTB-RW-1U

Size(mm)

430*300*1U

430*250*2U

482*217*1U

482*217*2U

482*296*1U

430*300*1U

Max capacity(core)

24

48

24

48

36

24

Weight(kg)

3.5

4.0

3.5

4.0

3.0

4.7
