SK 1*2 PLC Fiber Optic Splitter With SC Connector , Fiber Optic Coupling
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
PLC-12SC |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
PE bag |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
|
Fiber Type: |
G652D G657A |
Fiber Mode: |
SM MM |
|
Package: |
Steel Tube, ABS |
Structure: |
1*2/1*4/1*8/1*16/1*32/1*64 |

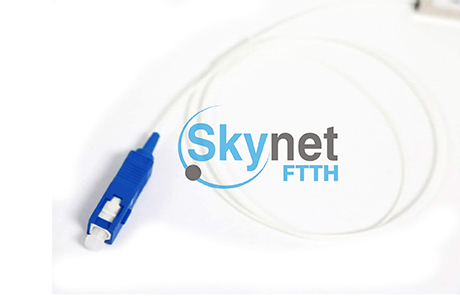

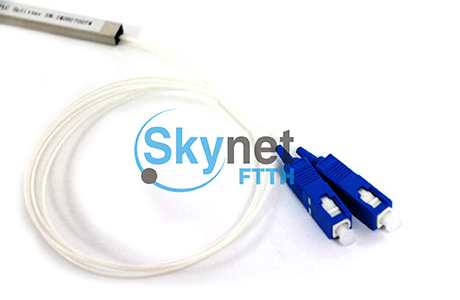

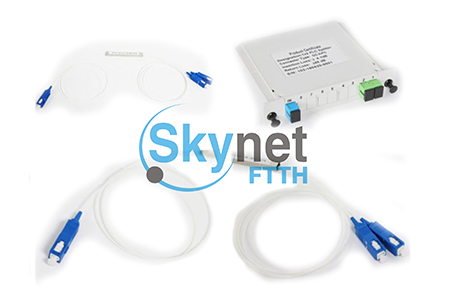

1*2 PLC Fiber Optic Splitter with SC connector and Steel Tube Package
Description:
Fiber Optic Splitter, is based on a quartz substrate of integrated waveguide optical power distribution device, the same as coaxial cable transmission system, The optical network system also needs to be an optical signal coupled to the branch distribution, which requires the fiber optic splitter,
Feature:
Tight and fine
structure
Excellent parameters on IL & RL
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength
Application:
Fiber optic
communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
CATV network
LAN, WAN and MAN
Testing equipments
Specification
Specification:
Table 1 – 1×N PLC Splitter
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Package |
Steel Tube or ABS |
|||||
Table 2 – 2×N PLC Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB) |
4.0 |
7.6 |
11.0 |
14.4 |
17.5 |
21.0 |
|
Loss Uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
|
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Package |
Steel Tube or ABS |
|||||
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector
