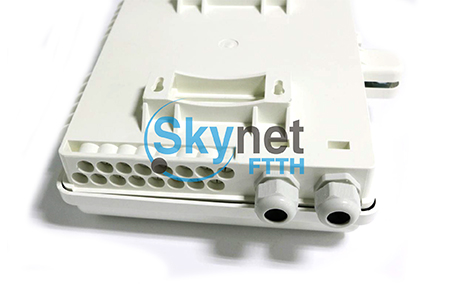

SK 16 Port Optical Fiber Distribution Box With 1*16 PLC Fiber Splitter
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
FTB-116 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Box |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Mode: |
Wall Mounted |
Connector: |
SC, LC |
|
Material: |
PC, ABS |
Port: |
2in, 16out |
|
Application: |
Indoor, Outdoor |
Color: |
Black, White, Grey |
16 Port Fiber Optic Distribution Box with 1*16 PLC Fiber Splitter
Description:
FTTH model of fiber optic distribution box is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.
Features:
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x8 & 1X16 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Up to 16 FTTH drops.
Wall and pole mountable.
2 inlet ports, 16 outlet ports.
Application:
widely used in FTTH access network.
Telecommunication Networks
Data communications Networks
CATV Networks
Local Area Networks
Specification
Specification:
|
Type |
FDB-04 |
FDB-08 |
FDB-16 |
FDB-24 |
FDB-32 |
FDB-48 |
|
Size(mm) |
210*140*40 |
205*215*55 |
260*320*90 |
295*335*115 |
350*340*120 |
350*340*120 |
|
Cable ports |
4 |
8 |
16 |
24 |
32 |
48 |
|
Weight(kg) |
0.35 |
0.75 |
1.4 |
2.1 |
3.5 |
5 |
|
Model |
TTI/FB-104C |
|
Size(mm): L*W*H |
210*140*20 |
|
Cable ports |
2 inlet, 16 outlet |
|
Max capacity of splice |
16 Core(Single) |
|
Net Weight (kg) |
0.45 |
|
Outer carton weight (kg) |
15.6 |
|
Package |
20PCS/CTN |
