SK 48 Core FDB Fiber Optic Distribution Box with 1*32 PLC Fiber Optic Splitter
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
FTB-248 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Box |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Mode: |
Wall Mounted |
Connector: |
SC, LC |
|
Material: |
PC, ABS |
Port: |
2in, 48out |
|
Application: |
Indoor, Outdoor |
Color: |
Black, White, Grey |
48 Core FDB
Fiber Optic Distribution Box with 1*32 PLC Fiber Optic Splitter

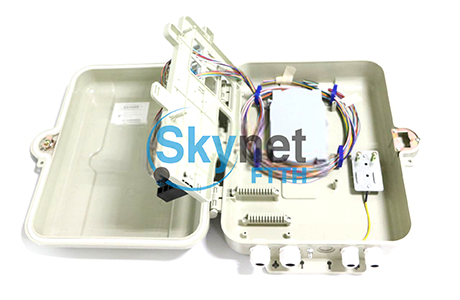

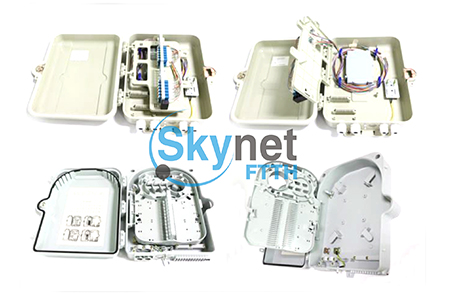

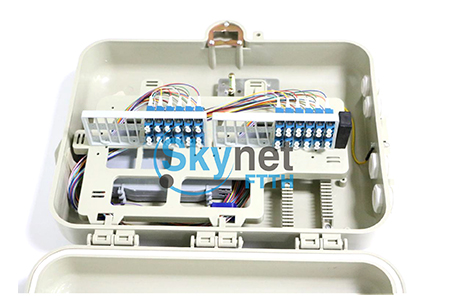

Description:
This fiber optic
terminal box is adopted the latest design, no special tool for the locking,
easy installation and opening. Flip-open cover design to avoid removing other
splice tray, it also can be equiped with PLC splitter.
It with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.
Features:
Vibration, pressure and pulling protection, endurable bad situation like quake, knocking, pulling and distortion etc.
Waterproof, creative complete seal plastic band with re-opening style guarantying good air sealing and waterproof function.
Anti-UV,Ultra violet resistant and rainfall resistant.
Fire protection, -40°C~+80°C
Aging protection, good stability for heat, heating energy radiation, air and ozone
Can accommodate 1x4&1x8&1x16&1x32 PLC splitter.
Up to 48 FTTH drops.
Wall and pole mountable.
1~3 inlet ports,8~48outlet ports.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
Technical parameters:
|
Environment Temperature |
-25°C~+55°C |
|
Relative Humidity |
<85%(when the temperature is below 30) |
|
Atmospheric Pressure |
70-106KPa |
|
Insulation Resistance |
≥2×104MΩ/500VDC |
|
Voltage Resistance Strength |
NON-puncture, no arc-cover under 3KVDC/1min |
|
Insertion Loss |
PC>40dB, UPC>50dB, APC>60dB |
|
Connection Life Span |
>1000 times |
Specification
Specification:
|
Type |
FDB-04 |
FDB-08 |
FDB-16 |
FDB-24 |
FDB-32 |
FDB-48 |
|
Size(mm) |
210*140*40 |
205*215*55 |
260*320*90 |
295*335*115 |
350*340*120 |
350*340*120 |
|
Cable ports |
4 |
8 |
16 |
24 |
32 |
48 |
|
Weight(kg) |
0.35 |
0.75 |
1.4 |
2.1 |
3.5 |
5 |
