FDB-0432A Manual
This product integrates fusion splicing, light splitting, and wiring. It is suitable for terminal access on the user side and connected with optical communication equipment. Through adapters, optical jumpers are used to lead out optical signals to achieve optical distribution. It is also suitable for The protective connection of the optical cable and pigtail. In addition, it can also be spliced with home cable to realize the straight-through connection of the optical cable.
Features
- The product is made of high-quality and impact-resistant plastics, with anti-UV and waterproof function；
- With independent turning tray for splicing or splitting, the circuit is clearer and not easy to cross;
- There are 4 optic cable entrances and 32 pigtail fiber exits, and the 2 cable entrances in the middle can be used for digging connection;

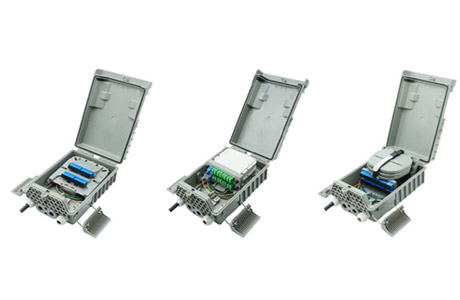

- 3 different structural forms inside, user can choose plug-in splitter or pipe-type splitter;
- The cover has a suspended fixing device, which will not affect the construction due to falling during installation and maintenance;
- The box body adopts anti-theft screws and is equipped with a special key;
- Can be installed on a wall or pole.

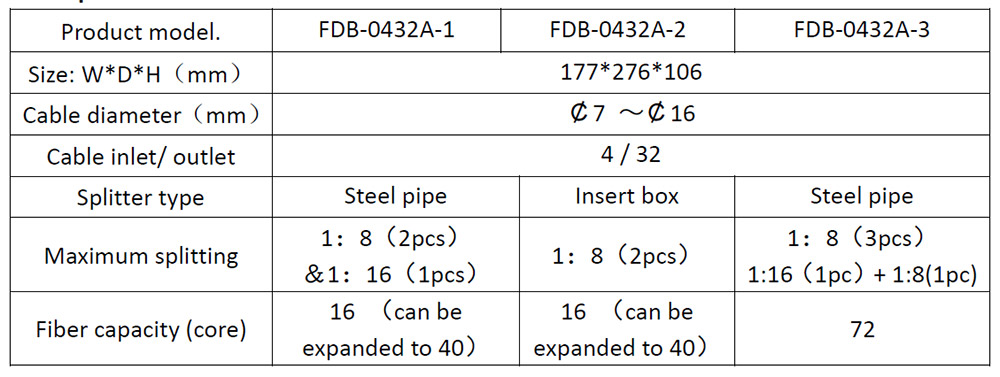

Specification
