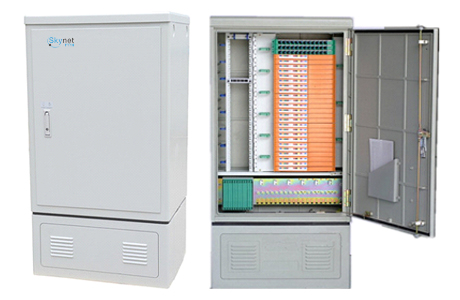

Fiber Optic Corss Connection Cabinet GPX-TXCS288

cross connection cabinet is used for connecting trunk and distributing optical fiber cable. It carries out the function of splicing, storage, and distribution. It is mainly used in the CATV, telecommunication equipment room and network equipment room.

Features

cross connection cabinet

1.High quality

2.12 ports one tray.

3.30 degree installation of adaptors, preventing eyes from laser's hurt

Easy to operate and convenient maintenance.

The tray suitable for FC, SC adapters

General:

cross connection cabinet:

1.Operation temperature: -40~+60C.

2.Relative humidity: ≤95%(40 C).

3.Insulated resistance: ≥2x10000M/500V(DC).

Structure Characteristic:

Modular design provides the largest flexibility, satisfy the needs of the present and future development

The body using the SMC or stainless steel and surface using electrostatic spray so it has good corrosion resistance and anti-aging function, the wind protection class of the body achieves the IP66 level. The effect of defense dewing is excellent.

The module tray can spin out of 90 degrees around the axis in the left front, and the bevel of the adapters within the module takes on 30 degrees. The clip-locked installation ensures the bending radius of the fiber directly and prevents the eyes from injury.

Weld disk can spin out of 90 degrees, and then draw out, so its convenient to construction, and also convenient to expansion and maintenance cross connection cabinet  has doors in the front and back, have ample space for cabling, convenient to operation and maintenance cross connection cabinet has reliable device for fastness, peeling and grounding of the optical cables

Insulation resistance between high voltage protection earth and box20,000MΩ /500V (DC)

Bearing pressure voltage> 3000VAC (50Hz) 1min not breakdown, arcing fiber optic cross connect cabinet Mechanical Durability Test : ≥1000 times

Application:

1. cross connection cabinet   Widely used in FTTH (Fiber To the Home) access network.

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi.

Accessories:

Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, etc.
