SK Stranded Loose Tube Light-armored Cable（GYTS）
Features

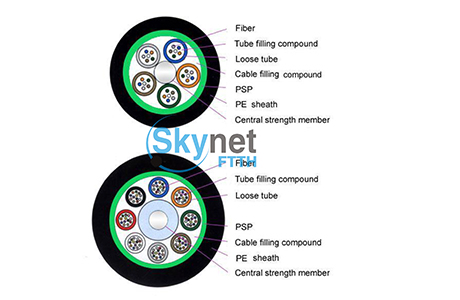

•Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high
fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded
around the strength member into a compact and circular cable core. The PSP is longitudinally applied over
the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed
with a PE sheath.
•Characteristics
• Good mechanical and temperature performance
• High strength looes tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• Crush resistance and flexibility
• PE sheath protects cable from ultraviolet radiation
• The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
•Standards
GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Specification
·Optical Characteristics
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter |
Cable Weight kg/km |
Tensile Strength |
Crush Resistance |
Bending Radius |
|
GYTS-2~6 |
2~6 |
1 |
4 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
|
GYTS-8~12 |
8~12 |
2 |
3 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
|
GYTS-14~18 |
14~18 |
3 |
2 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
|
GYTS-20~24 |
20~24 |
4 |
1 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
|
GYTS-26~30 |
26~30 |
5 |
0 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
|
GYTS-32~36 |
32~36 |
6 |
0 |
10.6 |
129 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-38~48 |
38~48 |
4 |
1 |
11.2 |
141 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-50~60 |
50~60 |
5 |
0 |
11.2 |
141 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-62~72 |
62~72 |
6 |
0 |
12.0 |
159 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-74~84 |
74~84 |
7 |
1 |
13.6 |
209 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-86~96 |
86~96 |
8 |
0 |
13.6 |
209 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-98~108 |
98~108 |
9 |
1 |
15.4 |
232 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-110~120 |
110~120 |
10 |
0 |
15.4 |
232 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-122~132 |
122~132 |
11 |
1 |
17.2 |
280 |
1000/3000 |
300/1000 |
10D/20D |
|
GYTS-134~144 |
134~144 |
12 |
0 |
17.2 |
280 |
1000/3000 |
300/1000 |
10D/20D |
