SK Multimode SC Duplex Fiber Optic Terminal Box for FTTH Optical Solution
Fiber optic terminal box provides branch connection for fiber termination.
It is an integrated unit for fiber management, and can be used as distribution box.
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
FTB-SCD24 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Box |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Structure: |
Fixed, Rack Mounted |
Connector: |
SC-DX |
|
Material: |
Cold Rolled Steel, AL |
Color: |
Black, Grey |
|
Port: |
24 |
Height: |
1U |

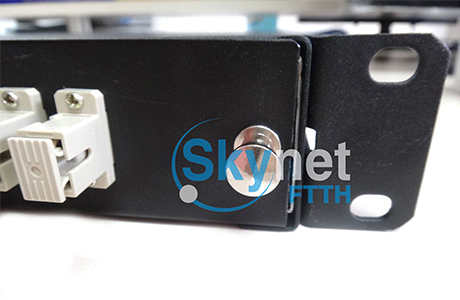

Multimode SC Duplex Fiber Optic Terminal Box for FTTH Optical Solution
Description:
Fiber optic terminal box provides branch connection for fiber termination.
It is an integrated unit for fiber management, and can be used as distribution box.
It divides into fix type and sliding-out type.
This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.
Fiber optic terminal box is modular so they are applocable to your existing systems without any modification or additional work.
Feature:
Standard 19” racks use or customized size
Material : Zinc-plated Roll , cold steel sheet ,High quality steel with cover by electrostatic painted
Cable Entry: Behind (Thru Knobs to provide extra care to cables)
Slide-Out features and Modular Adaptor Panel for ease of installation, inspection and testing.
Height depends on capacity, 1U, 2U, 4U, 6U, 8U
Optional adapter types: FC, SC, LC,ST Duplex & Simplex (SM & MM)
Application:
Fiber Frame/Distribution Box
LAN/ WAN Network
CATV Network
Fiber to the home (FTTH)
Specification
Specification:
Fixed Type:
|
Type |
OTB-RF-1UA |
OTB-RF-2UA |
OTB-RF-1UB |
OTB-RF-1UB |
OTB-RF-1UC |
OTB-RF-2UC |
|
Size(mm) |
430*250*1U |
430*250*1U |
482*295*1U |
320*240*100 |
350*340*120 |
350*340*120 |
|
Max capacity(core) |
24 |
48 |
24 |
48 |
24 |
48 |
|
Weight(kg) |
2.6 |
3.8 |
3 |
4 |
3 |
5 |
Slidable Type:
|
Type |
OTB-RS-1UA |
OTB-RS-2UA |
OTB-RS-1UB |
OTB-RS-2UB |
OTB-RS-1U-3MPO |
OTB-RW-1U |
|
Size(mm) |
430*300*1U |
430*250*2U |
482*217*1U |
482*217*2U |
482*296*1U |
430*300*1U |
|
Max capacity(core) |
24 |
48 |
24 |
48 |
36 |
24 |
|
Weight(kg) |
3.5 |
4.0 |
3.5 |
4.0 |
3.0 |
4.7 |
