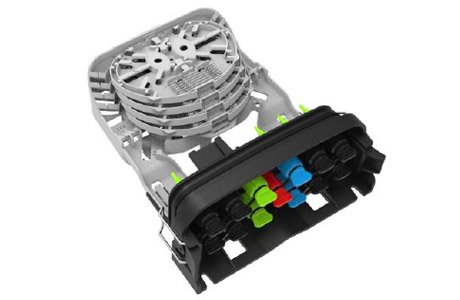

Pre-connectorized Fiber Optic Cable Distribution Box 8CORE
Features
1. Advanced structure design, easy operation and reasonable routing.
2. Material: PP.
3. Moisture proof, waterproof, dust-proof, anti-aging.
4. Protection level up to IP68.
5. 13 pre-connected adapters.
6. A variety of the type of tray is optional, it may demand, according to the configuration can even mix two
tray installation.
7. Installation method: pole-mounted, aerial-mounted, wall-mounted.
Specification
Mechanical specifications
Pic.2 8CORE
|
Item |
Specifications |
Remark
|
|
Material of housing |
PP |
|
|
Material of internal components |
PC+ABS/ABS |
|
|
Material of metal accessory |
High-quality stainless steel |
|
|
External dimension(mm) |
271*218*97 mm |
A*B*C |
|
Color |
Black |
|
|
Number of Pre-connectorized ports |
12 |
SC/APC |
| 1 | MPO | |
| Fusion capacity(Max) | 48 | Tray A ,12x4=48, 2 layers of heatshrinkable splice protection sleeve. |
| 64 |
Tray B, 8x8=64, 1 layer of heat-shrinkable splice protection sleeve. |
|
| 96 |
Tray D, 24x4=96, 2 layers of heatshrinkable splice protection sleeve. |
|
| Micro PLC Splitter | 1x2 |
Splitter size：60x7x4mm. Can be installed in type A, type C and type D splicing tray, 1 PC per splicing tray. |
| 1x4 | ||
| 1x8 | ||
| 1*16 |
Splitter size：60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray. |
|
| IP grade | IP68 | |
| Flammability | UL-94HB | Default |
| Neutral salt spray test (NSS) | 48h |
