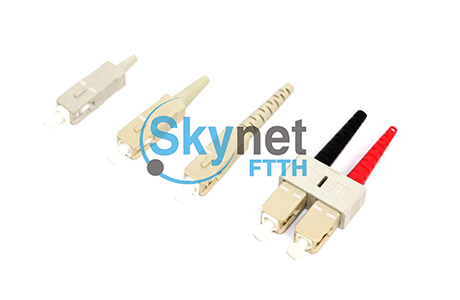

SK SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable

SC fiber connector is a snap-in connector also with a 2.5 mm ferrule that is widely used for it's excellent performance. It was the connector standardized in TIA-568-A.

Features

Product Details:

Place of Origin:

China

Brand Name:

TTI

Certification:

ISO, SGS, ROHS

Model Number:

FOC-SC

Payment & Shipping Terms:

Minimum Order Quantity:

10 pcs

Price:

Negotiation

Packaging Details:

PE bag

Delivery Time:

2-3 days

Detailed Product Description

Connector Type:

SC

Ferrule End-face:

PC, UPC,APC

Fiber Type:

Singlemode, Multimode

Cable Type:

Simplex, Duplex

Cable OD:

0.9/2.0/3.0mm

Housing Color:

Blue, Green, Beige

Insertion Loss:

<0.3dB

Return Loss:

>50dB

SC OM1 OM2 Fiber Optic Connector Telecome Class for 0.9mm Cable

Description:

SC fiber connector is a snap-in connector also with a 2.5 mm ferrule that is widely used for it's excellent performance. It was the connector standardized in TIA-568-A.

Features:

Good durability

Good temperature performance

Easy installation

Competitive price

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber Optic Telecommunications

FTTH (Fiber To The Home)

CATV & CCTV

Data Processing Networks

Telecom Equipment

Local Area Networks

Specification

Specification:

Item

Single Mode

Multi Mode

Insertion Loss

0.2dB

0.3bB

Insert-Pull Test

1000 times

Operating Temperature

-40°C ~ +85°C

Ceramic Ferrule Specification

125.5um concentricity deviations:1um

127um concentricity deviations:3um

Suitable Fiber

9/125um

50/125um,62.5/125um

Order Information:

Item

Connector Description

Item

Connector Description



PC/UPC/APC



PC/UPC/APC

Connector Singlemode 9/125

ST

Connector Multimode (50/125 or 62.5/125)

ST

SC

SC

FC

FC

LC

LC

MU

MU

MTRJ(female)

MTRJ(female)

MTRJ(male)

MTRJ(male)

DIN
