SK Simplex Fiber Optic Patch Cord with SC UPC , 3.0mm PVC Outer Jacket
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
LC-SC-MM-DX |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
20 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
PE bag |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Connector Type: |
SC |
Fiber Type: |
Singlemode |
|
Cable Type: |
Simplex |
Cable OD: |
3.0mm |
|
Cable Jacket: |
PVC Outer Jacket |
Cable Color: |
Yellow Or Customized |
|
Ferrule End-face: |
UPC |
Cable Length: |
1M,2M Or Customized |

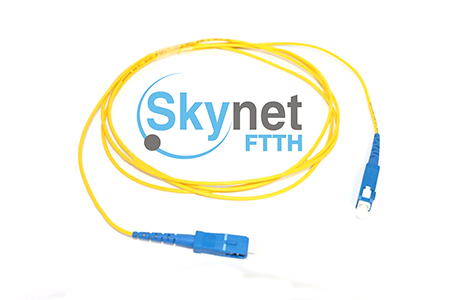

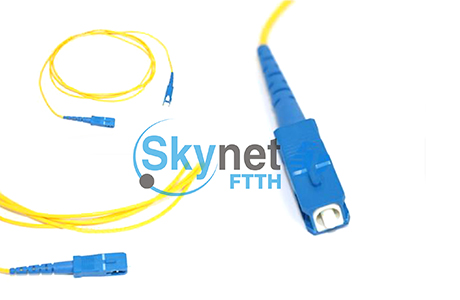

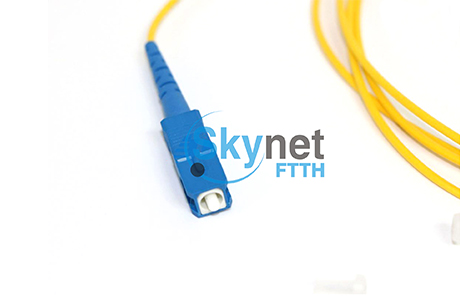

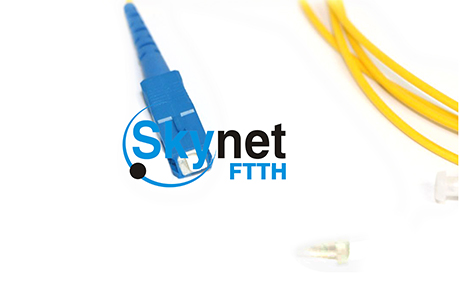

Simplex Fiber Optic Patch Cord with SC
UPC , 3.0mm PVC Cable
Description:
For standard fiber patch cords, sampling check is performed on ferrule geometry
to ensure high percentage of polished connectors meeting GR-326 requirements.
For premium
grade, ferrule geometry is tested on all patch cords to meet these GR-326
requirements.Other than standard single mode and multimode fibers, G655, OM2,
and OM3 fibers are alsoavailable upon request. Flame retardant grade cable
sheathing options are offered. Riser rated cable will be provided as standard.
LSZH and Plenum can be provided upon request.
Features:
Low insertion loss High back reflection loss
Excellent
mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application:
Gigabit Ethernet
Optical access network
Data processing networks
Fiber optic communication networks
Specification
Fiber Optic Connector Performance Specification:
|
Connector Type |
FC, SC, LC, ST, MU, MTRJ |
|||
|
Fiber Type |
SM(G.652D/G.657A) |
MM(OM1/OM2/OM3/OM4) |
||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
Exchangeability |
≤0.2dB |
|||
|
Repeatability |
≤ 0.1dB(1000 times) |
|||
|
Durability |
> 1000 times |
|||
|
Operating Temperature |
-40°C ~ +85°C |
|||
|
Fiber type |
Min. Bandwidth |
Distance |
Attenuation |
|
62.5/125 |
850/1300nm |
@100Mbps 2km @1Gig 220m |
850/1300nm |
|
50/125 |
850/1300nm |
@100Mbps 2km @1Gig 500m |
850/1300nm |
|
50/125 |
850/1300nm |
@100Gig Varies by VCSEL typical 300m 2850nm |
850/1300nm |
|
9/125 |
1310/1550nm |
Up to 100km Varies by transceiver |
1310/1550nm |
|
SC/UPC-SC/UPC-MM-DX-3.0mm-5M |
|||||||||||||||
|
SC |
/ |
UPC |
— |
SC |
/ |
UPC |
/ |
SM |
— |
SX |
/ |
3.0 |
— |
5M |
|
|
1 |
|
2 |
|
3 |
|
2 |
|
4 |
|
5 |
|
6 |
|
7 |
|
|
|
|||||||||||||||
|
1 |
Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. |
||||||||||||||
|
2 |
Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) |
||||||||||||||
|
3 |
Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. |
||||||||||||||
|
4 |
Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 |
||||||||||||||
|
5 |
Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... |
||||||||||||||
|
6 |
Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. |
||||||||||||||
|
7 |
Cable Length: 3m(Length in meter) |
||||||||||||||
