SK ST 24 Core Slidable Fiber Optic Junction Box With Cold Rolled Steel
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
FTB-ST24 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Box |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Structure: |
Wall Mounted |
Connector: |
ST |
|
Material: |
Cold Rolled Steel, AL |
Color: |
Black, Grey |
|
Port: |
6, 12, 24, 48, 72, 96, 144 |
Thickness: |
0.8mm,1.0mm, 1.2mm |

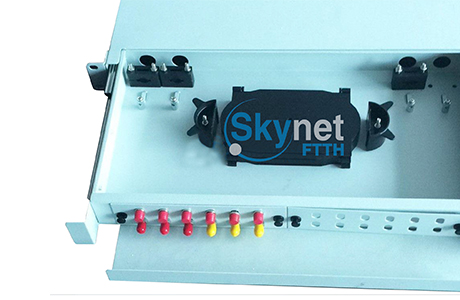

ST 24 Core Slidable Fiber Optic Terminal Box with Cold Rolled Steel
Description:
Fiber Optic Teriminal Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology.
Unique 1 ~ 2 input cable port, and 1~144 core output port
Box stack turn the page type structure fusion fiber disc and independent insulated grounding device.
Feature:
Material : Zinc-plated Roll , cold steel sheet ,High quality steel with cover by electrostatic painted
Cable Entry: Behind (Thru Knobs to provide extra care to cables)
Standard 19” racks use or customized size
Slide-Out features and Modular Adaptor Panel for ease of installation, inspection and testing.
Height depends on capacity, 1U, 2U, 4U, 6U, 8U
Optional adapter types: FC, SC, LC,ST Duplex & Simplex (SM & MM)
Application:
Fiber Frame/Distribution Box
Fiber to the home (FTTH)
LAN/ WAN Network
CATV Network
Specification
Specification:
Fixed Type:
|
Type |
OTB-RF-1UA |
OTB-RF-2UA |
OTB-RF-1UB |
OTB-RF-1UB |
OTB-RF-1UC |
OTB-RF-2UC |
|
Size(mm) |
430*250*1U |
430*250*1U |
482*295*1U |
320*240*100 |
350*340*120 |
350*340*120 |
|
Max capacity(core) |
24 |
48 |
24 |
48 |
24 |
48 |
|
Weight(kg) |
2.6 |
3.8 |
3 |
4 |
3 |
5 |
Slidable Type:
|
Type |
OTB-RS-1UA |
OTB-RS-2UA |
OTB-RS-1UB |
OTB-RS-2UB |
OTB-RS-1U-3MPO |
OTB-RW-1U |
|
Size(mm) |
430*300*1U |
430*250*2U |
482*217*1U |
482*217*2U |
482*296*1U |
430*300*1U |
|
Max capacity(core) |
24 |
48 |
24 |
48 |
36 |
24 |
|
Weight(kg) |
3.5 |
4.0 |
3.5 |
4.0 |
3.0 |
4.7 |
