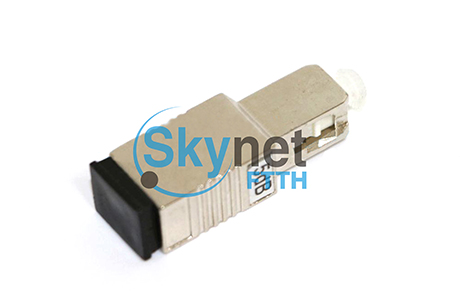

SK 15dB 25dB 10dB Attenuator Fiber Optic SC With Ceramic Fiber Ferrule
SC Fiber Optical Attenuator is an electronic device that reduces the amplitude of an electronic signal.
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI/OEM/ODM |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
SC-SC |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
25pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Plastic bag |
|
Delivery Time: |
2~3 days |
Detailed Product Description
|
Connector Type: |
SC |
Mode: |
Singlemode |
|
Type: |
Simplex |
Ferrule: |
Zirconia/Ceramic, Metal |
|
Housing: |
Metal, Plastic |
Color: |
Red, White, Black, Yellow Color |
|
End-face: |
PC, UPC, APC |
Structure: |
Fixed, Female To Male, Variable, In-line |
10dB 15dB 25dB SC Fiber Optic Attenuator with Ceramic Fiber Ferrule
Description
SC Fiber Optical Attenuator is an electronic device that reduces the amplitude of an electronic signal.
Feature:
Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable structure
Application:
Optical Fiber Communication Network
Passive optical networks
Data Transmission Network
CATV Fiber Optic Sensor
Local Area Networks(LANs)
Optic Instrumentation
Testing instrumentation
Specification
Specification:
|
Operation wavelength |
SM: 1200 to 1600nm or 1310/1550nm |
|
MM: 850nm, 1300nm |
|
|
Return Loss |
≥ 50 db (PC) |
|
≥ 55 db (UPC) |
|
|
≥ 65 db (APC) |
|
|
Attenuation Accuracy |
+/-0.5 db for 1 to 5db attenuation |
|
+/-10% for 6 to 30db attenuation |
|
|
Polarization Dependent loss |
≤ 0.2db |
|
Maximum optical Input power |
200mW |
|
Operating Temp Range |
-40 to + 80 degree |
Order Information:
|
Connector Type |
Application |
Wavelength |
Attenuation |
|
FC SC ST LC MPO MU
|
PC UPC APC |
1310nm 1550nm 1310/1550nm |
1, 2, 3, ….., 25db |
