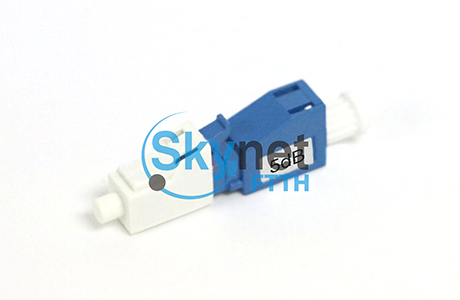

SK 62.5um 50um OM1 OM2 OM3 OM4 Fibre Optic Attenuator For LC Connector
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI/OEM/ODM |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
LC-MM |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
25pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Plastic bag |
|
Delivery Time: |
2~3 days |
Detailed Product Description
|
Connector Type: |
LC-LC |
Mode: |
Multimode |
|
Type: |
Simplex, Duplex |
Ferrule: |
Zirconia/Ceramic, Metal |
|
Housing: |
Metal, Plastic |
Color: |
Red, White, Black, Yellow Color |
|
End-face: |
PC, UPC, APC |
Structure: |
Fixed, Female To Male, Variable, In-line |
62.5um 50um OM1 OM2 OM3 OM4 Fiber Optic Attenuator for LC Connector
Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.
Features:
High return loss
Simple structure
Max. bearing power (1W)
Low wavelength relativity
Low polarization related loss
Compact structure
Application:
Optical line distributing frame
Fiber-optical network system
Hi-speed fiber-optical transmission system
CATV system
Dense Wavelength Division Multiplex (DWDM) system
Optical add-drop multiplexers (OADM)
Specification
Specification:
|
Parameters |
FC,SC, LC, ST, MU, DIN, MTRJ, Hybrid |
|
Attenuation Range |
0dB ~ 30dB |
|
Operation Wavelength |
SM: 1260-600nm, or 1310nm/1550nm |
|
MM:850nm, 1310nm |
|
|
Return Loss |
≤50dB (PC) |
|
≤55dB (UPC) |
|
|
≤65dB (APC) |
|
|
Attenuation Accuracy |
±0.5dB (1 ~ 10 dB) |
|
±10% of Attenuation Value (11~30 dB) |
|
|
Polarization Dependent Loss (PDL) |
≤0.2dB |
|
Exchangeability |
≤0.2dB |
|
Repeatability |
≤0.2dB |
|
Durability |
≤0.2dB Typical 1000 matings |
|
Maximum Optical Input Power |
200mW |
|
Operating Temperature |
-20 ~ +75°C |
|
Storage Temperature |
-40 ~ +85°C |
Order Information:
- Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.
- Attenuation Range: 1-30dB
- Housing color: MM beige, SM UPC Blue, SM APC Green
- LC,SC, FC,ST, etc attenuator for your requests.
- UPC and APC option
