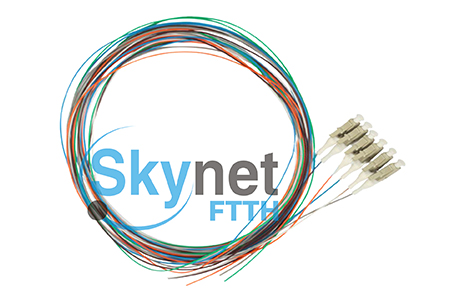

SK 6core 12core 24core Fiber Optic Pigtail for Fiber Optic Terminal Box

Connector Type:

SC/FC/LC/ST/MTRJ/MU/MPO Ect.

Ferrule End-face:

PC/UPC/APC

Fiber Type:

SM/OM1/OM2/OM3/OM4

Cable Type:

2/4/6/8/12/24cores...

Cable OD:

0.9/2.0/3.0mm

Cable Jacket:

PVC/LSZH/OFNR/OFNP Outer Jacket

Cable Length:

1M, 2M, 3M Or Customized

Cable Color:

Orange, Yellow, Aqua, Purple, Violet Or Customized

     Specifications

Test Item

Test Condition

Value(dB)

UPC

APC

Optical Performance

Insertion Loss

1310nm LED light source

<0.3

<0.3

Return Loss

1310nm LD light source

>50

>60

Environmental Performance (Max. Insertion Loss change)

High temperature

+85^oC,168 hours

<0.2

Temperature Cycle

-40-+75^oC, 21 Cycles 168 hours

<0.2

Humidity Aging

+75^oC, 95%R.H,168 hours

<0.2

Humidity/Condensation Cycling

-10-+65^oC, 90%~100%RH, 14 cycles 168 hours

<0.2

Mechanical Performance ( Max. Insertion Loss change)

Vibration

10-55Hz, 1.5mm(p-p)

<0.2

Flex

0.9kgf,-90^o~+90^o repeat for 100 cycles

<0.2

Torsion

1.35kgf, ±900o,10times

<0.2

Withstand tensile

90N,10min

<0.2

Drop

H=1.5M,Total of 8 drops

<0.2

Exchangeability

Randomly

<0.2

Durability

500 times

<0.2

Boot (cable)

Size

Boot

Color

Fiber Type

Cable number

Application

Length

0.9mm

Black

9/125μm (SM)

Simplex

PC

Customized

2.0mm

Green

50/125μm (MM)

Duplex

APC

3.0mm

Red

62.5/125μm (MM)

Fan-out (4f)

Fan-out (6f)

Fan-out (8f)

Fan-out (12f)
