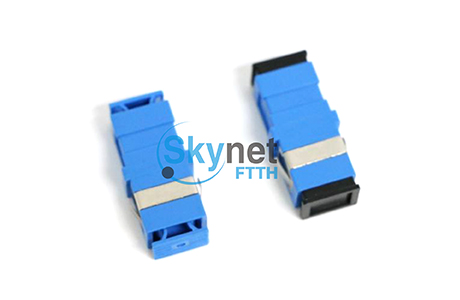

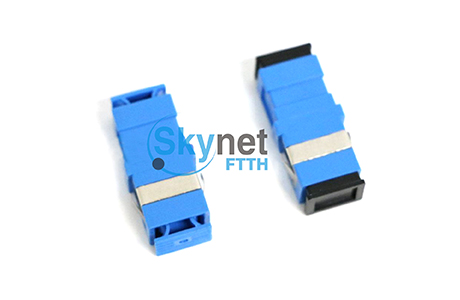

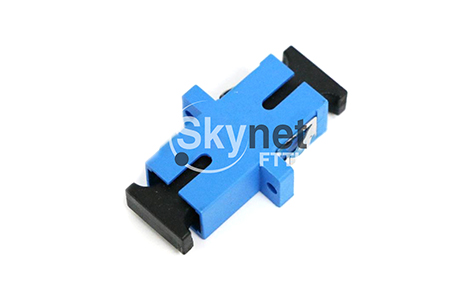

SK Female Fiber Optic Adapter SC Simplex And Duplex For Optical Fibre Patch Cords

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.

We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Download PDF Submit your Inquiry

Features

Product Details:

Place of Origin:	China
Brand Name:	TTI/OEM/ODM
Certification:	ISO, SGS, ROHS
Model Number:	SC-SC

Payment & Shipping Terms:

Minimum Order Quantity:	25pcs
Price:	Negotiation
Packaging Details:	Plastic bag
Delivery Time:	2~3 days

Detailed Product Description

Connector Type:	SC-SC	Mode:	Singlemode, Multimode
Type:	Simplex, Duplex, Quad	Sleeve:	Zirconia/Ceramic, Copper
Housing:	ABS, PBT, PC	Color:	Blue, Beige, Green, Customized
End-face:	PC, UPC, APC	Structure:	Female To Female

Female Fiber Optic Adapter SC Simplex and Duplex for Fiber Optic Patch Cord

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.

We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Features:

Low insertional loss and back reflection loss

High prcision alignment

Nickel plated brass body

Use in Single-mode or Multimode applications

Choice of housing material and sleeve material

Application:

Local area networks

Wide area networks

Data processing networks

CATV

Telecom networks

Optical test equipments

Specification

Parts &Material:

Parts	Material	Remarks
Sleeve	Zirconia, PB
Housing	PC	Flammability UL94 V-0
Dust cap	PVC	Flammability UL94 V-0
Clip	stailess steel

Optical Performance:

Item	Premium Grade	Standard Grade
Insertion Loss	≤0.1dB	≤0.2dB
Durability	1000 times	1000 times

Environment and Mechanical:

Properties	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

Order Information:

LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
