SK G657A2 Fiber Optic Splitter For Fiber Optical Sensors , Lc Lc St St Coupler
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
PLC-132 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
10 pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
PE bag |
|
Delivery Time: |
2-3 days |
Detailed Product Description
|
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
|
Fiber Type: |
G652D G657A1 G657A2 |
Fiber Mode: |
Singlmode |
|
Package: |
Steel Tube, ABS |
Structure: |
1x32 2x32 |

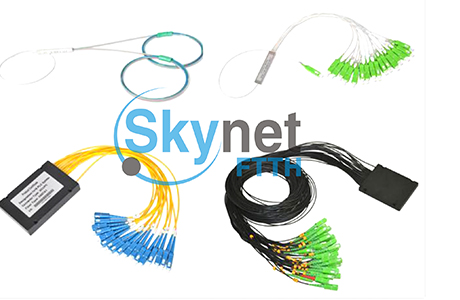

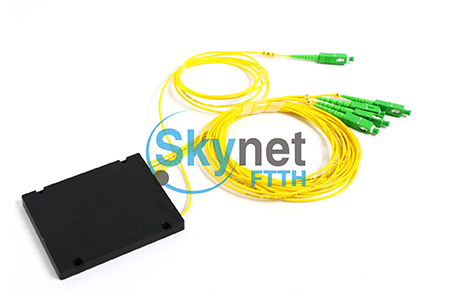

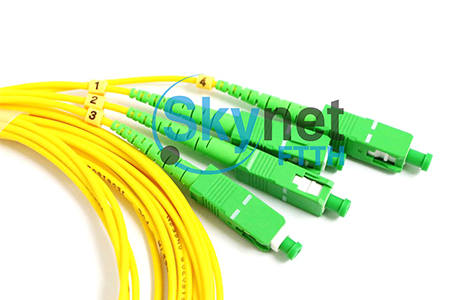

G657A2 Fiber PLCFiber Optic Splitter for Fiber Optical Sensors
Description:
PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.
Feature:
Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size
Application:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Amplifying, Monitoring System
Test Equipments
Order Information
For FBT Splitters, Fiberstore provides a whole series of this kind customized for specific
Specification
Specification:
Table 1 – 1×N PLC Fiber Splitter
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Package |
Steel Tube or ABS |
|||||
Table 2 – 2×N PLC Fiber Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB) |
4.0 |
7.6 |
11.0 |
14.4 |
17.5 |
21.0 |
|
Loss Uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
|
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Package |
Steel Tube or ABS |
|||||
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector
