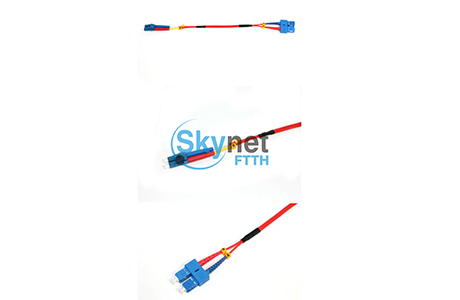

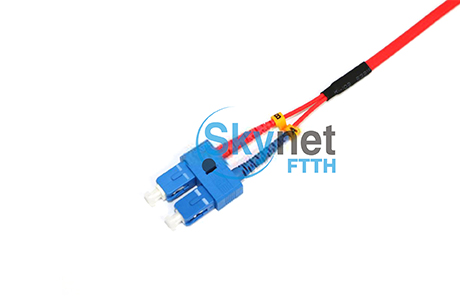

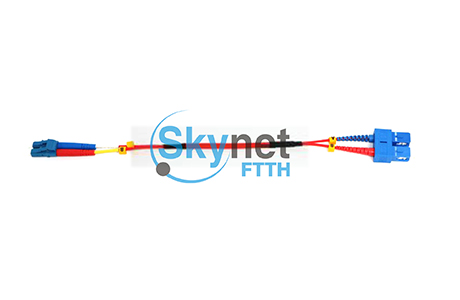

SK LC Singlemode Optical Fiber Patch Cord Duplex Ribbon Cable For LAN Network

Optical patch cord is a length of optical fiber with two ends adding connectors to connect beam path.
There are three kinds of polishing ferrule end-face: PC, UPC and APC

Download PDF Submit your Inquiry

Features

Product Details:

Place of Origin:	China
Brand Name:	TTI
Certification:	ISO, SGS, ROHS
Model Number:	LC-SC-OM3

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	2-3 days

Detailed Product Description

Connector Type:	LC SC	Ferrule End-face:	UPC
Fiber Type:	OM3 50/125um	Cable Type:	Duplex
Cable OD:	3.0mm	Cable Jacket:	PVC/LSZH Outer Jacket
Cable Length:	1M, 2M Or Customized	Cable Color:	Aqua Color Or Customized

Fiber Optic Patch Cord LC Singlemode Duplex Ribbon Cable for LAN Network

Description:
Optical patch cord is a length of optical fiber with two ends adding connectors to connect beam path.
There are three kinds of polishing ferrule end-face: PC, UPC and APC .We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features:
Good Exchangeability
High Temperature Stability
Low Insertion Loss
High Return Loss
Good Repeatability

Application:

Optic-fiber Data Communications
Optic-fiber Access Networks
LAN Optic-fiber Sensors
Optical Fiber Communication Systems
Optic-fiber Data Communications

Specification

Specification:

Singlemode Fiber Optic Patch Cord
fiber type	OS1/OS2 (9/125um)
Operating Wavelength	1310nm, 1550nm
Jacket material	PVC/LSZH/OFNR/OFNP/PE
Diameter of fiber	0.9/1.6/1.8/2.0/3.0mm
Contector	SC ; LC or customized
polishing method	PC	UPC	APC
Insertion loss (IL)	≤0.2dB	≤0.2	≤0.3
Return loss (RL)	≥45dB	≥50dB	≥60dB
Repetitiveness	≤0.1dB
Exchangeability	≤0.2
Durability	>1000 times
Operating Temperature(ºC)	-40~85
Storage Temperature(ºC)	-40~85
length	Customized

Multimode Fiber Optic Patch Cord
Fiber type	OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm-150; 50/125μm-300)
Operating Wavelength	850 nm
Jacket material	PVC/LSZH/OFNP
Diameter of fiber	0.9/2.0/3.0mm
Contector	SC LC or customized
polishing method	PC	UPC	APC
Insertion loss (IL)	≤0.2dB	≤0.2	≤0.3
Return loss (RL)	≥45dB	≥50dB	≥60dB
Repetitiveness	≤0.1dB
Exchangeability	≤0.2
Durability	>1000 times
Operating Temperature(ºC)	-40~85
Storage Temperature(ºC)	-40~85
length	customized

Order Information:

Fiber Optic Patch Cord
Connector Type	Ceramic Ferrule End Face	Cable Diameter	Simplex/Duplex	Single mode /Multi-mode	Length
FC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
SC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
ST	PC/UPC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
LC	PC/UPC	Φ0.9, Φ2	Simplex/Duplex	SM/MM	Customized
MU	PC/UPC	Φ0.9, Φ2	Simplex/Duplex	SM/MM	Customized
MTRJ	PC/UPC	Φ0.9, Φ2	Duplex	SM/MM	Customized
