SK ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
Features
Product Details:
|
Place of Origin: |
China |
|
Brand Name: |
TTI/OEM/ODM |
|
Certification: |
ISO, SGS, ROHS |
|
Model Number: |
ST-ST |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
25pcs |
|
Price: |
Negotiation |
|
Packaging Details: |
Plastic bag |
|
Delivery Time: |
2~3 days |
Detailed Product Description
|
Connector Type: |
FC |
Mode: |
Singlemode, Multimode |
|
Type: |
Simplex, Duplex |
Ferrule: |
Zirconia/Ceramic, Metal |
|
Housing: |
Metal, Plastic |
Color: |
Red, White, Black, Yellow Color |
|
End-face: |
PC, UPC, APC |
Structure: |
Variable |

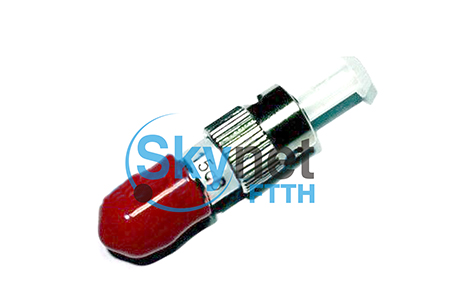

ST Female to Male and Fixed Fiber Optic Attenuator Singlemode / Multimode
Description:
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Feature:
Low back
reflection and Low PDL
High precision
attenuation value
Precision control
of attenuation range
Wide attenuation
range
Precision ceramic
ferrule
FC, SC, ST, LC …
optional
Plastic or metal
housing material
Application:
Testing equipment
Fiber optical CATV
Fiber optical sensor
Fiber optical telecommunication system
Specification
Specification:
|
Parameters |
FC,SC, LC, ST, MU, DIN, MTRJ, Hybrid |
|
Attenuation Range |
0dB ~ 30dB |
|
Operation Wavelength |
SM: 1260-600nm, or 1310nm/1550nm |
|
MM:850nm, 1310nm |
|
|
Return Loss |
≤50dB (PC) |
|
≤55dB (UPC) |
|
|
≤65dB (APC) |
|
|
Attenuation Accuracy |
±0.5dB (1 ~ 10 dB) |
|
±10% of Attenuation Value (11~30 dB) |
|
|
Polarization Dependent Loss (PDL) |
≤0.2dB |
|
Exchangeability |
≤0.2dB |
|
Repeatability |
≤0.2dB |
|
Durability |
≤0.2dB Typical 1000 matings |
|
Maximum Optical Input Power |
200mW |
|
Operating Temperature |
-20 ~ +75°C |
|
Storage Temperature |
-40 ~ +85°C |
Order Information:
SC/UPC-SM-5dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
