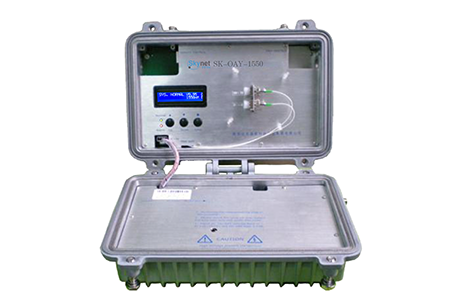

SK-OAY-1550 series Field 1550nm Erbium-doped Fiber Amplifier

SK-OAY series 1550nm erbium-doped fiber amplifier adopts low-noise pumping laser、high-quality erbium-doped fiber and advanced microcomputer real-time monitoring circuits to ensure excellent performance. It is mainly used in large or medium sized HFC optical fiber transmission network.

Download PDF Submit your Inquiry

Features

Block diagram

● Adopts the latest 980nm﹑1480nm double-pumping laser technology for higher output optical power.
● Incorperates pumping laser and high-quality erbium-doped fiber to insure low noise, high efficiency of energy conversion.
● Perfect microprocessor automatic monitoring circuitry can monitor the operating status real-timely and precisely
● Front panel displays status and alarm.
● With standard RS-45/RS-232 interface, remote monitor conveniently.

Specification

Item		Unit	Parameter		Remark
Operation band-width		dB	1535～1565
Input optical power range		dBm	-5～+10		standard
Output optical level		dBm	13～35
Output power stability		dB	±0.3
Noise figure	Output optical power	dBm	10~19	20~24	（input optical power is 0 dBm）
	Noise figure	dB	≤4.5	≤5.0
Return loss	input	dB	≥45
	Output	dB	≥45
Pump leakage power	Input	dBm	≤-30
	Output	dBm	≤-30
C/N		dB	≥51
C/CTB		dB	≥65
C/CSO		dB	≥65
Optical connector			FC/APC or SC/APC
Voltage		V	AC110～265（50~60Hz）or DC48V
Consumption		W	30（max）
Operation temperature		℃	-10～+55
Operation relative humidity		％	max.95% no-condensing
Storage temperature		℃	-30～+70
Storage relative humidity		％	max. 95% no-condensing
Dimension		mm	320×220×130		WxDxH
